Sintered Hard Ferrite Magnet

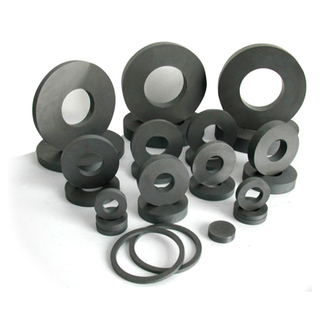

Sintered Ferrite magnet (Ceramic Magnets, Hard Ferrite Magnet) .
General Introduction
Sintered Ferrite magnet (Ceramic Magnets, Hard Ferrite Magnet) were developed in the 1960's as a low cost alternative to metallic magnets. Even though they exhibit low energy (compared with other permanent magnet materials) and are relatively brittle and hard, Sintered Ferrite magnet (ceramic magnets, Hard ferrite magnet) have won wide acceptance due to their good resistance to demagnetization, excellent corrosion resistance and low price per pound. In fact, measured by weight, ferrite represents more than 75 percent of the world magnet consumption. Sintered Ferrite Magnet (Hard Ferrite Magnet) is the first choice for most types of DC motors, magnetic separators, magnetic resonance imaging and automotive sensors.
The elements of Sintered NdFeB Magnet (Hard Ferrite magnet) are ferric oxide/barium, strontium. Ferrite has higher coercive force and higher resistance to be demagnetized and oxidized than other non-rare earth permanent magnets. The biggest advantage of such magnet is their low cost. It is widely used from motors and loudspeakers to toys and craft, industrial holding magnet etc.
Besides industrial application, Sintered Ferrite magnet (Ceramic Magnets, Hard Ferrite Magnet) are widely use in Educational area.
Magnetic properties of Sintered Ferrite Magnet (ceramic magnets, Hard ferrite magnet)
Chinese standard | ||||||||
Material | Br | Hcb | Hcj | (BH)max | ||||
mT | KGs | KA/m | KOe | KA/m | KOe | KJ/m3 | MGOe | |
Y10T | 200~235 | 2.0~2.35 | 125~160 | 1.57~2.01 | 210~280 | 2.64~3.52 | 6.5~9.5 | 0.8~1.2 |
Y20 | 320~380 | 3.2~3.8 | 135~190 | 1.70~2.38 | 140~195 | 1.76~2.45 | 18.0~22.0 | 2.3~2.8 |
Y22H | 310~360 | 3.1~3.6 | 220~250 | 2.77~3.14 | 280~320 | 3.52~4.02 | 20.0~24.0 | 2.5~3.0 |
Y23 | 320~370 | 3.2~3.7 | 170~190 | 2.14~2.38 | 190~230 | 2.39~2.89 | 20.0~25.5 | 2.5~3.2 |
Y25 | 360~380 | 3.6~4.0 | 135~170 | 1.70~2.14 | 140~200 | 1.76~2.51 | 22.5~28.0 | 2.8~3.5 |
Y26H | 360~390 | 3.6~3.9 | 220~250 | 2.77~3.14 | 225~255 | 2.83~3.21 | 23.0~28.0 | 2.9~3.5 |
Y27H | 370~400 | 3.7~4.0 | 205~250 | 2.58~3.14 | 210~255 | 2.64~3.21 | 25.0~29.0 | 3.1~3.7 |
Y30 | 370~400 | 3.7~4.0 | 175~210 | 2.20~2.64 | 180~220 | 2.26~2.77 | 26.0~30.0 | 3.3~3.8 |
Y30BH | 380~390 | 3.8~3.90 | 223~235 | 2.80~2.95 | 231~245 | 2.90~3.08 | 27.0~30.0 | 3.4~3.7 |
Y30-1 | 380~400 | 3.8~4.0 | 230~275 | 2.89~3.46 | 235~290 | 2.95~3.65 | 27.0~32.0 | 3.4~4.0 |
Y30H-2 | 395~415 | 3.95~4.15 | 275~300 | 3.46~3.77 | 310~335 | 3.90~4.21 | 28.5~32.5 | 3.5~4.0 |
Y32 | 400~420 | 4.0~4.2 | 160~190 | 2.01~2.38 | 165~195 | 2.07~2.45 | 30.0~33.5 | 3.8~4.2 |
Y33 | 410~430 | 4.1~4.3 | 220~250 | 2.77~3.14 | 225~255 | 2.83~3.21 | 31.5~35.0 | 4.0~4.4 |
Y35 | 400~410 | 4.00~4.10 | 175~195 | 2.20~2.45 | 180~200 | 2.26~2.51 | 30.0~32.0 | 3.8~4.0 |
USA standard | ||||||||
Material | Br | Hcb | Hcj | (BH)max | ||||
mT | KGs | KA/m | KOe | KA/m | KOe | KJ/m3 | MGOe | |
C1 | 230 | 2.3 | 148 | 1.86 | 258 | 3.5 | 8.36 | 1.05 |
C5 | 380 | 3.8 | 191 | 2.4 | 199 | 2.5 | 27 | 3.4 |
C7 | 340 | 3.4 | 258 | 3.23 | 318 | 4.00 | 21.9 | 2.75 |
C8(=C8A) | 385 | 3.85 | 235 | 2.95 | 242 | 3.05 | 27.8 | 3.5 |
C8B | 420 | 4.2 | 232 | 2.913 | 236 | 2.96 | 32.8 | 4.12 |
C9 | 380 | 3.8 | 280 | 3.516 | 320 | 4.01 | 26.4 | 3.32 |
C10 | 400 | 4.0 | 288 | 3.617 | 280 | 3.51 | 30.4 | 3.82 |
C11 | 430 | 4.3 | 200 | 2.512 | 204 | 2.56 | 34.4 | 4.32 |
